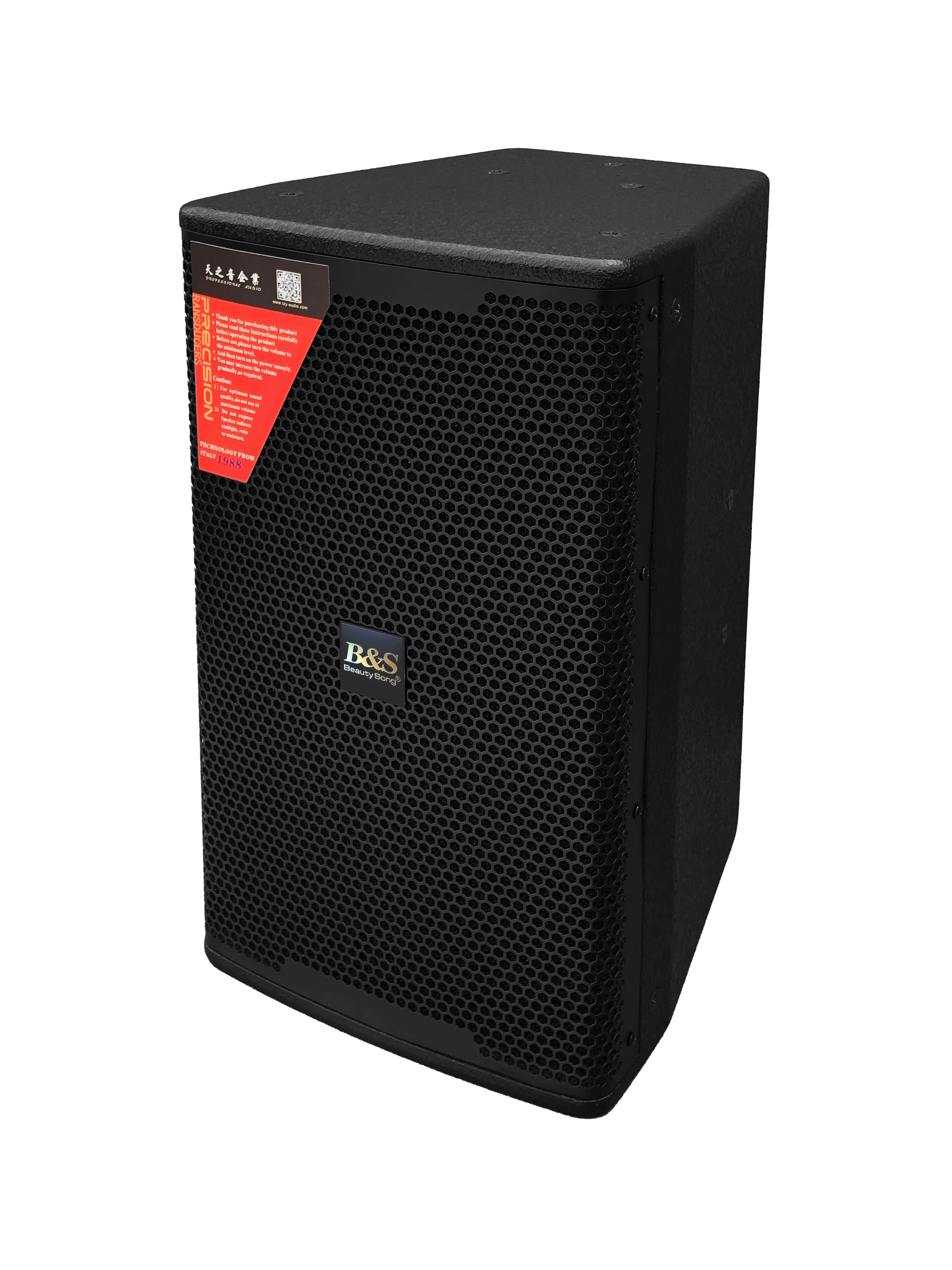

M-10 二分频全频音箱

性能特点

       M-10 是一个紧凑的双向全程扬声器系统组成的一个255毫米（10英寸）的低频驱动和一个44毫米(1.75)声音线圈压缩驱动程序。

技术参数

型号Model                                                                M-10
类型Type                                                      二分频全频音箱
低频单元LF                                                                    10”
高频单元HF                                        1”Throat,1.7”Voice coil
频率响应Frequency Respinse              58Hz~19KHz（±3dB）
指向性Directivity                                                    90°×60°
阻抗Lmpedance                                                             8Ω
额定功率Rated Power                                     300W（RMS）
峰值功率Peak Power                                                  600W
最大声压级SPL                                                          130dB
灵敏度Sensitivity                                                         95dB
推荐功率放大器Recommended                300W/8Ω-450W/8Ω
指向性Directivity                                                  100° x 100°
外型尺寸(mm)                                              520 x 310 x 280
重量Weight                                                                   15Kg
